Description
xKey Advantages

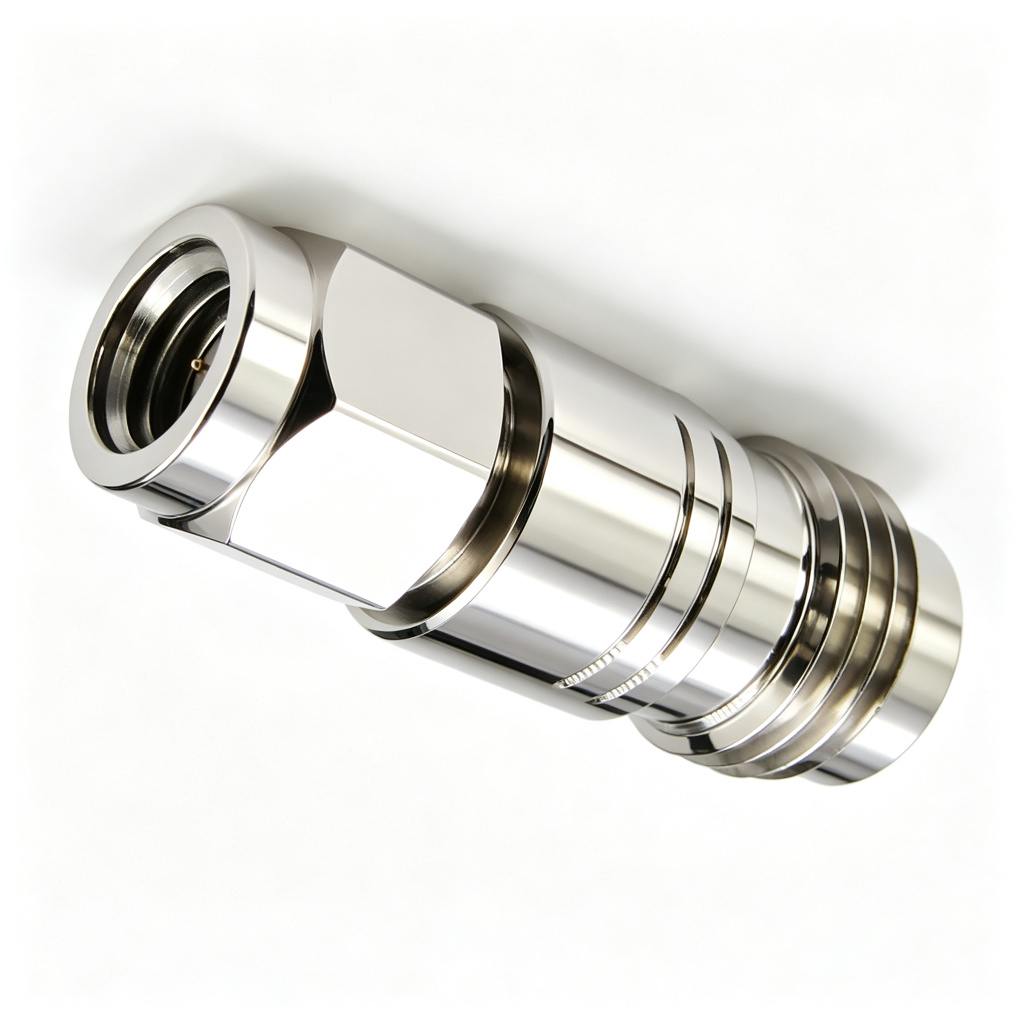

A precision-built 1.0mm Male to 1.85mm Female adapter engineered for controlled, repeatable interconnection from DC - 67 GHz. The result is a dependable link for test instrumentation, microwave systems and production fixtures, with consistent results mating after mating.
▸ True mmWave Bandwidth to 67 GHz
At these frequencies every tenth of a millimetre matters; tight machining keeps the RF path continuous through the band with minimal dispersion and repeatable results.
▸ Reliable 1.85-Class Matching
A defined 1.85 maximum VSWR (roughly 11 dB return loss) gives a predictable, repeatable match suited to general RF links where value matters as much as absolute precision.
▸ True 50 Ω Continuity
The 50 Ω geometry is maintained at every internal diameter change, keeping the line smooth and the reference plane well defined.
▸ Stainless-Steel Body · BeCu Contact
The passivated stainless-steel body resists corrosion and mechanical wear and holds tight dimensional stability at high frequency; spring-tempered beryllium-copper contacts deliver low, stable contact resistance and resist fatigue over many cycles; gold-plated contact surfaces stay free of oxidation so connection resistance remains low after repeated mating.
▸ Precision Between-Series Path
A short inline body keeps the internal signal path minimal, reducing the length over which mismatch and loss can accumulate.
▸ Built to Last: 500+ Cycles
With 500+ durable cycles and operation from -55°C to +125°C, it is built for long service in aerospace, field and laboratory conditions.
Applications
This component is widely deployed across RF, microwave and millimeter-wave systems that demand reliable, high-frequency interconnection:
5G / 6G & Wireless Infrastructure
Test & Measurement (VNA / Analyzers)
Aerospace & Defense
SATCOM, Radar & EW
Microwave / mmWave Systems
R&D Labs & Universities
Medical RF Equipment
Industrial IoT & Broadcast
