Description
xKey Advantages

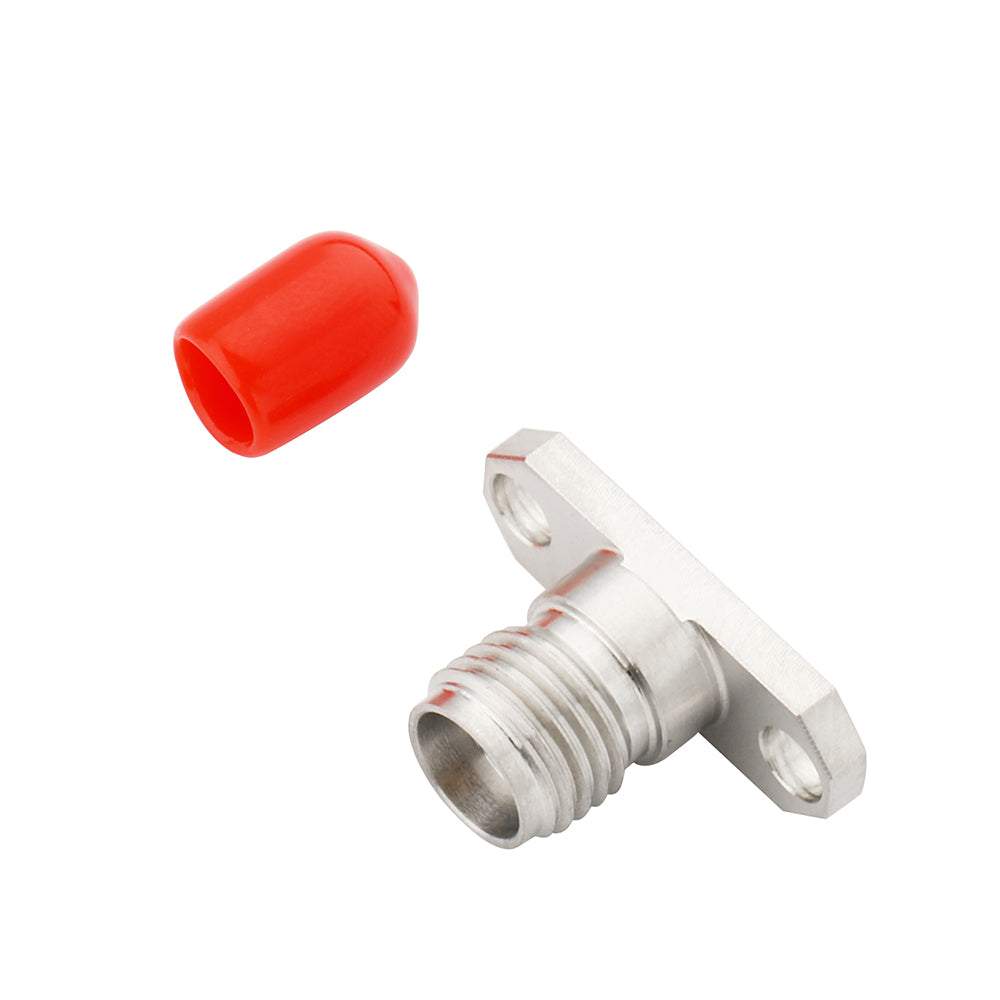

The PR24FS23F04 combines precision machining, controlled impedance and dependable RF performance for demanding systems.
Wideband Performance
With a rated range of DC to 50 GHz, it keeps one consistent interface across your lowest and highest operating bands. The result is simpler inventory planning and predictable performance wherever frequency planning changes between projects.
Low VSWR Match
Precision machining holds VSWR to 1.15:1, protecting signal integrity and minimizing reflected power across the band. Tight matching also improves cascaded accuracy when several components are used together in the same RF chain.
Precision Interface
Built to the 2.4mm standard, the mating faces and coupling threads are held to tight tolerances for dependable intermateability. Precise alignment prevents cross-threading and off-center contact, preserving both performance and connector life.
Low-Loss Transition
Smooth internal geometry provides a near-transparent path with minimal loss and phase disturbance. This suits precision measurements where the fixture should contribute as little error as possible to the result.
Precision Manufactured
Precision fabrication and inspection deliver uniform dimensions and performance unit after unit. Critical interfaces are checked against the standard profile, so mating, grounding and impedance remain consistent throughout the build.
Built to Last
With 1000 cycles minimum and a -40 to +125 C range, electrical behavior stays consistent through years of connect and disconnect. The wide thermal range also accommodates extremes found in outdoor and aerospace installations.
Applications
5G & TelecomTest & MeasurementAerospace & DefenseSatellite CommunicationsRadar SystemsRF Front-EndsBase StationsMicrowave Links
Parts in stock ship from our warehouse in Houston, TX. For bulk orders, lead time or current availability, email sales@precisionrf.com or call +1 210-607-8191.
