Description
xKey Advantages

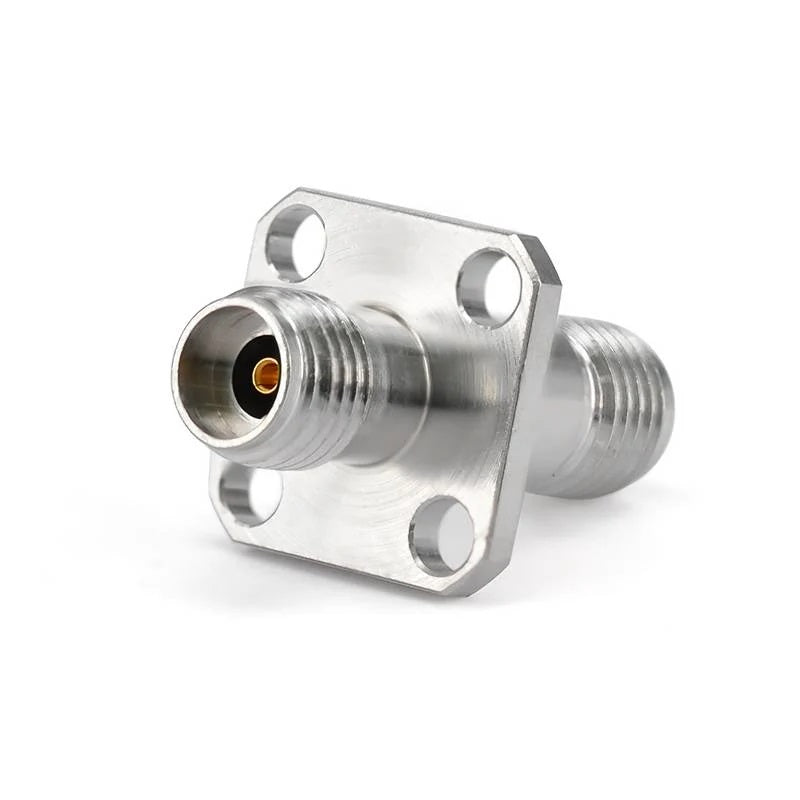

The PRF292FFF01 combines precision machining, controlled impedance and dependable RF performance for demanding systems.
Broad Frequency Coverage
Engineered for continuous operation from DC to 40 GHz, this unit supports broadband RF and microwave signal paths without band switching. That single-part coverage reduces the variants you must specify, stock and qualify across multi-band systems.
Excellent Impedance Match
A maximum VSWR of 1.2:1 maintains a clean 50 Ohm match, reducing reflections that distort signals or create standing waves. Lower reflected power protects sensitive sources and keeps measured amplitude and phase close to the design model.
Rigid Panel Mount
The flange design anchors firmly to the panel or board, keeping the interface fixed under mating torque and vibration. A stable mount protects solder joints and grounding, which is essential in dense, high-frequency assemblies.
Controlled Coupling
The 2.92mm interface follows the standard RF profile with threaded coupling and accurate alignment for repeatable connections. Mating faces, threads and critical diameters are held to controlled tolerances for consistent intermateability.
Consistent Quality
Each unit is built to controlled tolerances and inspected for fit, finish and electrical consistency. That discipline means dimensions and RF behavior are repeatable from the first piece to the last in every production lot.
Rugged Reliability
Rated for 500 mating cycles and operation from -40 to +125 C, it withstands repeated use and wide temperature swings. Performance stays stable as the unit ages, suiting both production benches and field-deployed equipment.
Applications
PCB & RF ModulesPhased-Array RadarTest FixturesAerospace SystemsSATCOMTelecom InfrastructureInstrumentationDense RF Assemblies
Parts in stock ship from our warehouse in Houston, TX. For bulk orders, lead time or current availability, email sales@precisionrf.com or call +1 210-607-8191.
