Description
xKey Advantages

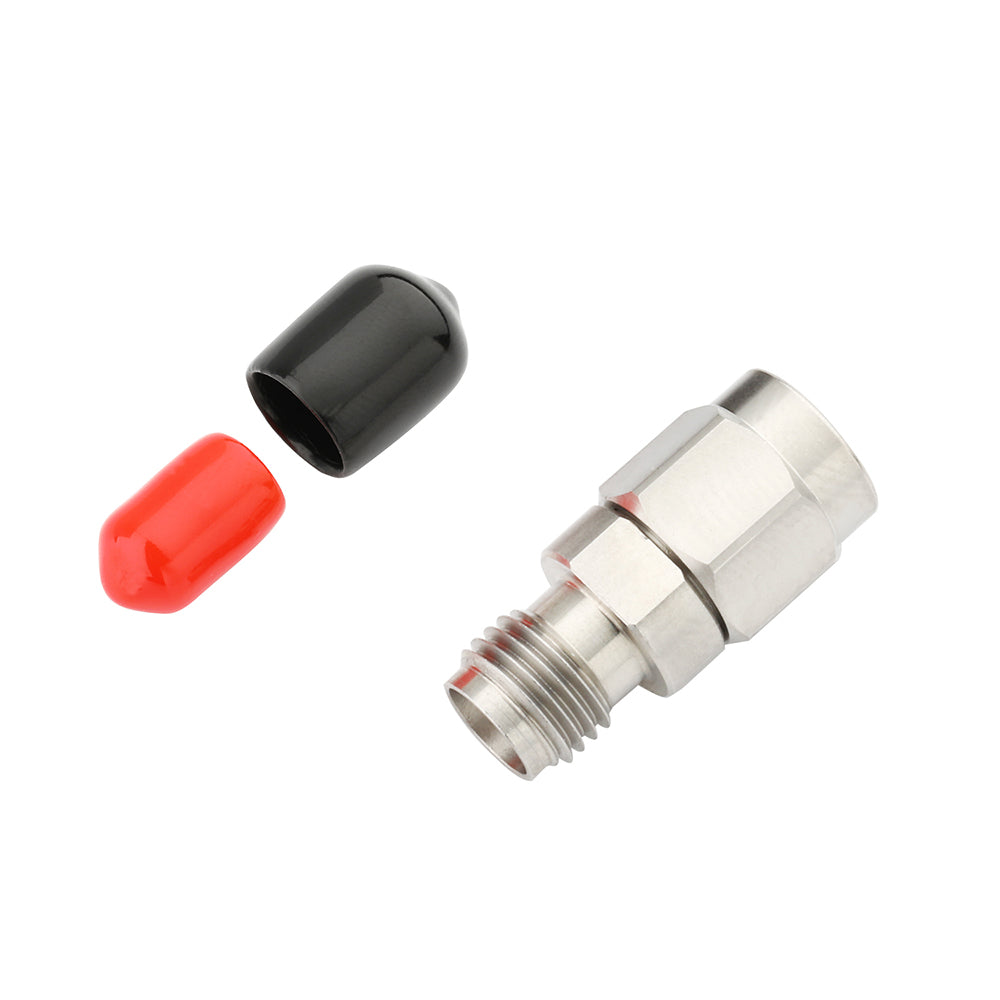

The PRF3535MF combines precision machining, controlled impedance and dependable RF performance for demanding systems.
Broad Frequency Coverage
The DC to 33 GHz rating lets a single part cover multiple carriers, harmonics and test bands, simplifying bill-of-materials and spares. It also guards against selecting an under-rated part when systems are later upgraded to wider bandwidth.
Excellent Impedance Match
Tight VSWR of 1.15:1 means lower return loss and a flatter response, so bench measurements stay close to simulation. Stable matching is maintained through repeated connections, keeping results repeatable over the life of the assembly.
Controlled Coupling
A true 3.5mm profile with precise alignment ensures positive, repeatable mating and stable contact resistance. The interface intermates with compliant connectors from other manufacturers, protecting existing cable and instrument investments.
Transparent Signal Path
Carefully controlled impedance steps deliver a low-loss, low-reflection transition between interfaces. The result is a dependable interconnect that does not meaningfully alter the signal between cables, modules or instruments.
Consistent Quality
Tight process control ensures repeatable fit and stable electrical results across production lots. Consistent workmanship reduces field variation and gives engineering teams confidence when qualifying a second source.
Rugged Reliability
The robust construction delivers 500 durable cycles and dependable behavior across -40 to +125 C conditions. Resilient plating and stable contacts keep resistance low even under vibration, thermal cycling and frequent handling.
Applications
5G & TelecomTest & MeasurementAerospace & DefenseSatellite CommunicationsRadar SystemsRF Front-EndsBase StationsMicrowave Links
Parts in stock ship from our warehouse in Houston, TX. For bulk orders, lead time or current availability, email sales@precisionrf.com or call +1 210-607-8191.
